Light Compact Size Stable Quality Class D Amplifier Module Plate amplifiers With DSP

Name: Light Compact Size Stable Quality Class D Amplifier Module Plate amplifiers With DSP
Brand: DOLSI
Price: 1 USD

China Light Compact Size Stable Quality Class D Amplifier Module Plate amplifiers With DSP wholesale

Brand Name : DOLSI

Model Number : PW

Certification : CE, ROHS, CB, CCC

Place of Origin : CHINA

MOQ : 1 PC

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 PCS/ MONTH

Delivery Time : 5-30 DAYS

Material : Aluminimium front panel and iron metal case

Output power : 500W to 1800W 8 ohm per channel

OEM order : accepted, product can be with buyer logo printed

Lead Time : 3 days for sample 1-10 pcs, 10-30days for 100 pcs above

Applications : in both commercial audio system and public address system

Certificates : CE, CB, RoHS, CCC

Color : black

Contact Now

Class D digital Amplifier Module

PW Series

1300W to 1800W at 4 ohm

For active speaker system or any other suitable applications

Light Compact Size Stable Quality Class D Amplifier Module Plate amplifiers With DSP

Model No.	PW900	PW1500	PW1002	PW1003
Channel	1 channel	1 channel	2 channel	3 channel
Output Power at 4Ω	1×1300W	1×1800W	2×900W	1800W+2×900W
Output Power at 8Ω	1×900W	1×1500W	2×500W	1500W+2×500W
Circuit Category	Class D
Frequency Response	20Hz-20KHz ±1dB
THD+N 1KHz 1W 8Ω	<0.1%
S/N ratio	>100dB
Circuit Category	switch mode power supply+ digital (Class D)
Protections	short circuit, direct current, over- voltage, under-voltage, over-current, over-heat
Working Voltage	AC90V-135V / AC180V-265V
Input Sensitivity	1V
Input Impedance	20KΩ
DSP Functions	mute,phase,gain,delay,limiting, balance, filter
DSP Adjustment	USB and RS-485
Dimensions (LxWxD)	312×190×90mm			312×190×120mm
Packing size(LxWxD)	370×220×16mm			380×260×22.5mm
Net Weight ( kg)	3kg	3kg	3kg	4.9kg

Product Features:

.Powerful output up to 1800W at 4 ohm

.Switch mode power supply and Class D circuit category

.Single channel, two channel and three channel designs are available.

. DSP build-in.

. Low electricity consumption.
. Fully automatic protections againts short circuit ,over-load, overheat, direct current, RFinterference, on/off switching, muting, and amplitude limit.

. Good choice to install in active speaker systems or any other suitable applications.

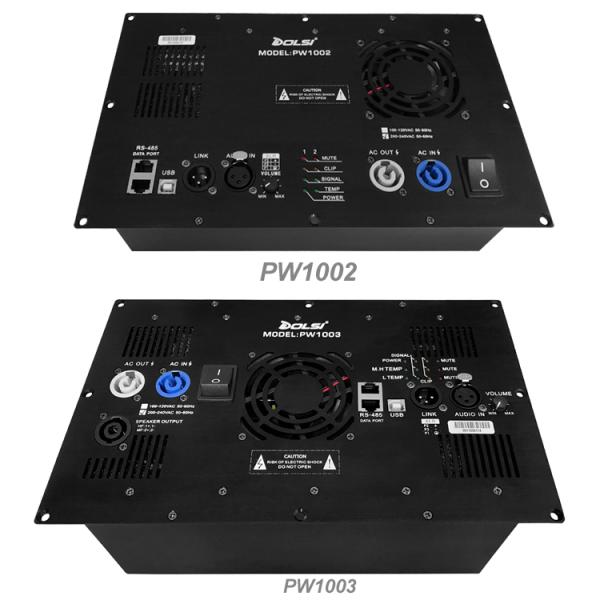

Light Compact Size Stable Quality Class D Amplifier Module Plate amplifiers With DSP Images
